Pulley Lagging


Conveyor Pulleys can be provided with high quality lagging designed to ensure maximum belt and pulley life in tough applications. We could offer a full variety of lagging options including Plain lagging, Diamond Pulley Lagging, Ceramic Lagging and Replaceable Lagging.

1. Plain Pulley Lagging

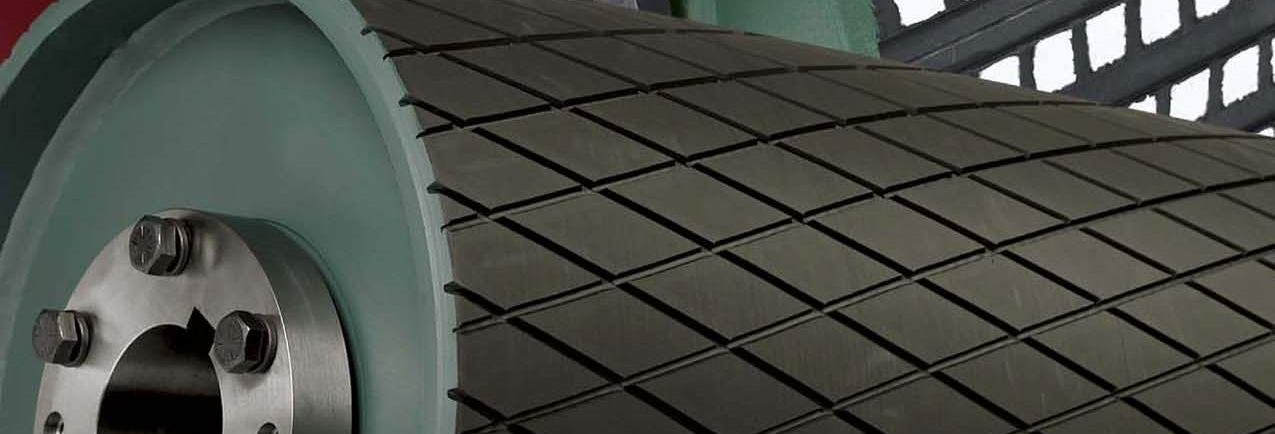

2. Diamond Pulley Lagging

Diamond Pulley Lagging has CN-bonding layer, to ensure higher bonding strength to pulley surface.
Thickness: 8 mm, 10 mm, 12 mm, 15 mm, 20 mm, etc.

3. Ceramic Pulley Lagging

3.1 Ceramic Lagging with two rows
12 mm thick and 200 mm width.
Length according to customer’s pulley length.

3.2 Ceramic Lagging with single row
15 mm thick and 500 mm width.
Length according to customer’s pulley length.

4.Replaceable Pulley Lagging

Replaceable Pulley Lagging is composed of wearable rubber layer,metal layer and retainer. Rubber and metal layer are closely jointed by vulcanization. The retainer is welded on the pulley to press all of the lagging onto the pulley.

Thickness: 12 mm, 15 mm, 20 mm.

Pulley Diameter (mm) Number of rubber sheet Number of retainers Recommend Thickness of rubber sheet
φ500 10pcs 11pcs 12
φ630 13pcs 14pcs 12
φ800 16pcs 17pcs 12
φ1000 20pcs 21pcs 15
φ1250 25pcs 26pcs 15
φ1400 28pcs 29pcs 15
φ1600 32pcs 33pcs 20
